I2C controlled RGB Pixel

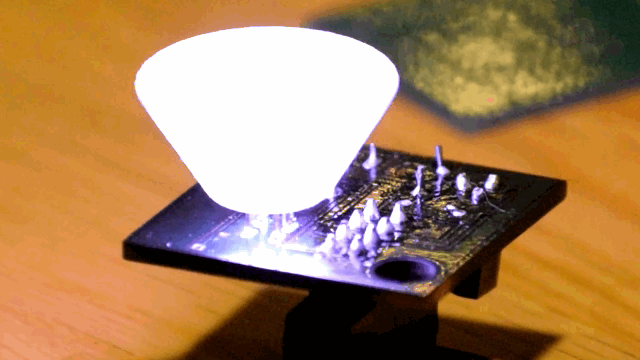

Animated RGB Pixel

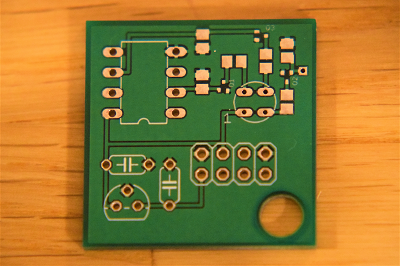

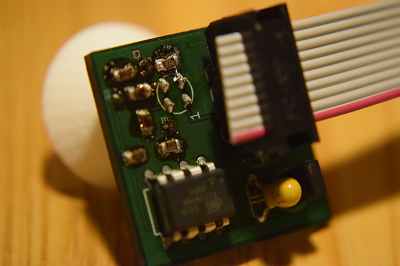

I designed a custom RGB LED board based on the BlinkM from ThingM. for this project a specific high brightness RGB LED was chosen, and the rest of the components were selected around that and the Microchip ATtiny85 chip that runs the show. To keep costs low, parts I had on hand were used, hence the mix of tiny surface mount and through hole components. The board has a voltage regulator on board so you can daisy chain multiple boards together with a single DC-DC power supply. The ribbon cable provides the I2C signal wires and both unregulated and regulated power for greater flexibility. The same header can also act as a programming interface for the ATtiny85

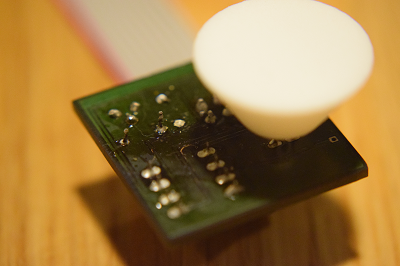

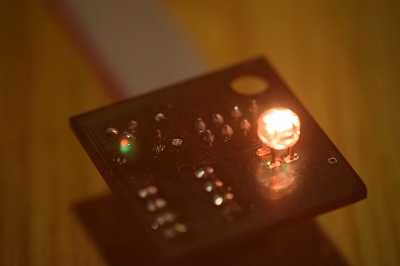

I2C controlled Pixel
I2C controlled Pixel
I2C controlled Pixel
I2C controlled Pixel
I2C controlled Pixel
I2C controlled Pixel
